Key benefits
Boost drilling performance
and reduce risk with NexTitan
Generate, control, and adjust force at the bit
NexTitan generates up to 30,000 lbf per unit, stackable for greater force at the cutting face. Tomax AST adds zero WOB.
Learn more
Keep drilling where tools like Tomax AST struggle
NexTitan maintains steady ROP through formation changes. Tomax AST’s performance degrades in challenging sections.
Learn more
Competetive advantage
NexTitan vs.
Tomax AST
Feature
Nextitan
Tomax AST
Operating Principle
Applies force at the bit
Active thrust
Contracts along helical splines under torque
reactive/passive
Force at the bit
Up to 13.6 MT / 30,000 lbf
per unit, stackable.
per unit, stackable.
adds wob
None generated by tool
cannot add or control wob
Control loop
100 Hz closed-loop,
<10 ms response, downhole
<10 ms response, downhole
closed loop downhole
Mechanical, ~20–30 ms response
open loop mechanical
Formation gripping

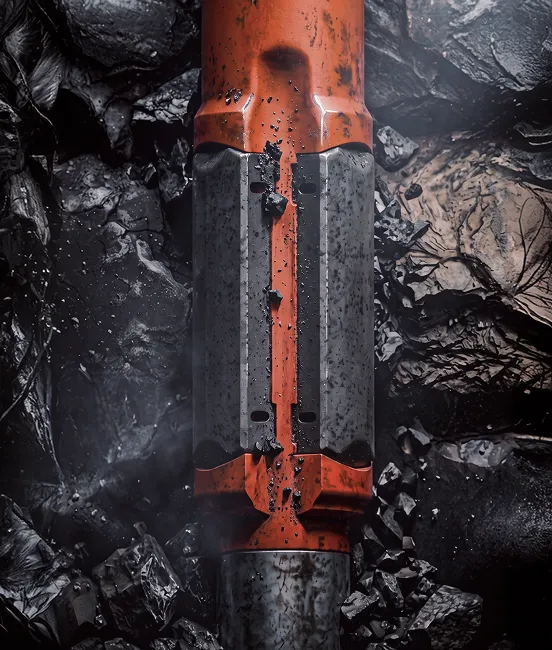

Hydraulically actuated grippers hold
the tool to the wellbore
Grips AT THE BIT
Relies on weight coming down the string
open loop mechanical
Hole size
216 - 241 mm / 8.5" - 9.5"
121 - 311 mm / 4.75" – 12.25"
Temperature
175°C circulating; up to ~300°C reservoir
with active mud cooling
200°C standard
Length
11.31 m / 37.1 ft
5.44 m / 17.85 ft
Ultimate tensile load
433.4 MT / 955 klbs
522 MT / 1,151 klbs
make up torque
45,159 Nm / 33,300 ft-lbs
65,000 Nm / 48,000 ft-lbs
ROP in hard rock
Up to 3× in hard rock
Consistently faster
Improved via stick-slip mitigation
Less consistent
Market Position
Next-generation, pre-commercial
Established
Why NexTitan
Steadier weight at the bit means less vibration and stick-slip, fewer surprises downhole, and a safer rig for your crew. Fewer trips, longer bit life, and less non-productive time bring down your cost per well.
Utilize different electronic modes
Set target rate of penetration (ROP), weight on bit (WOB), constant torque, differential pressure, and more based on the formation you’re drilling in.
Hydraulically powered
Optimize drilling costs and performance
Every time NexTitan goes downhole, its sensors feed data to Advansa AI. The tool learns from each run, so performance repeats across a basin and improves the more you drill.
fine-tune future runs
Drill further in a single run
String friction limits WOB delivery in long deviated sections. NexTitan applies weight at the bit directly, so you can drill longer laterals and access more resources.
Modelled ~70% lateral extension
Avoid getting stuck downhole
NexTitan has two mechanical retraction elements that don't require electronics or surface commands to execute. Depending on the failure mode, you either continue drilling with reduced capacity or execute a controlled trip.
behaves like stabilizer
